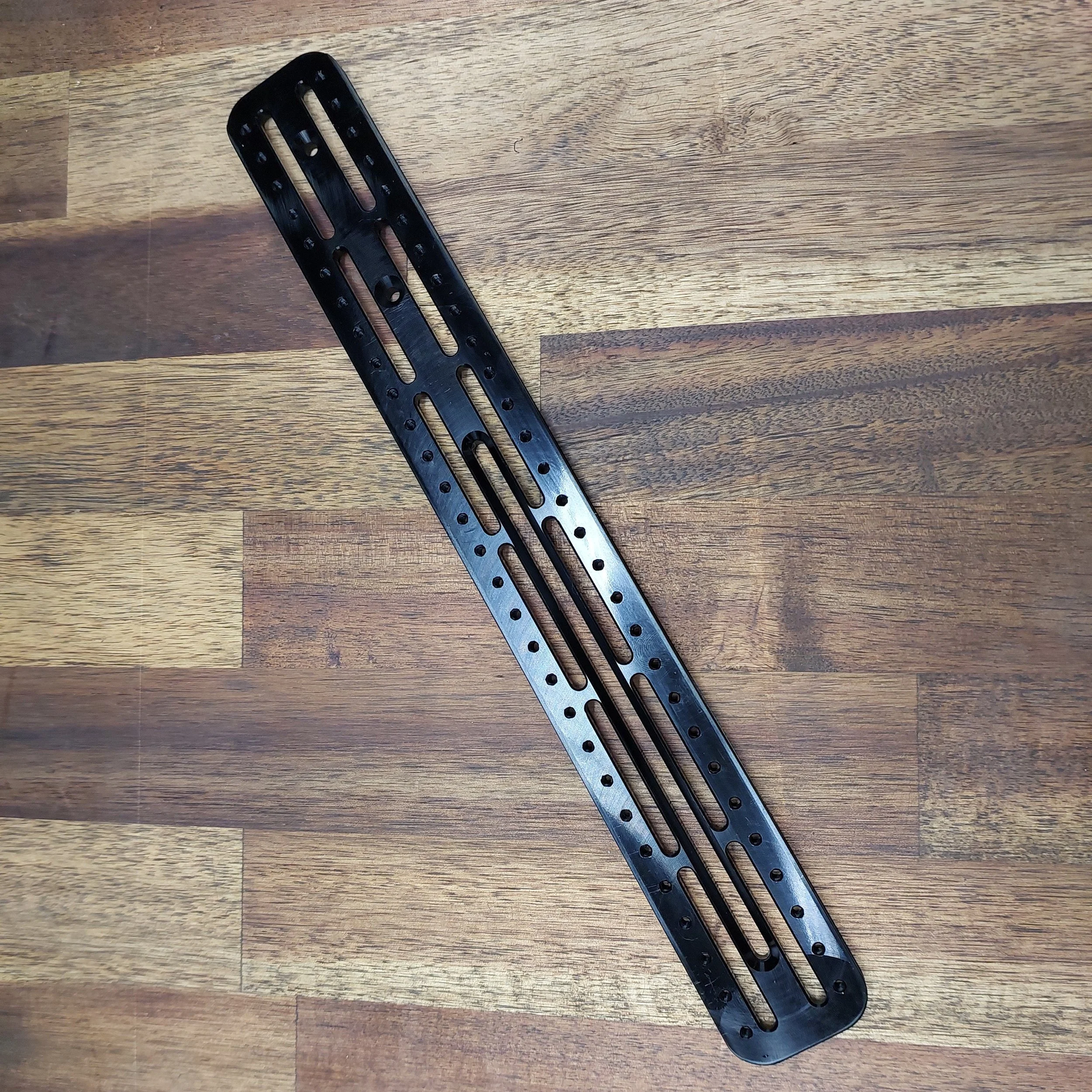

Arca rails machined from 6061 Aluminium and hard anodised. The central mounting holes are spaced to make fitting to your rifle’s fore end a breeze, even M-Lok and Key Mod (with some modifications to the fasteners) for ends.

44mm long counterbored slots spaced 14mm between centres allow for hard mounting accessories like barricade stops and bag plates. Suits M4 hardare (not included)

Along each side are M3 tapped holes every 10mm to use as hard stops with the included M3 hardware for your acra clamps or as additional hard mounts for whatever accessories you need to gain that competitive edge.

Our entire design philosophy in creating these rails was to provide you with the most flexible system that utilises common, off-the-shelf hardware.

Rails are 6.5mm thick by 38.1mm wide.

200mm 79g + hardware

250mm 95g +hardware

300mm 114g + hardware

Includes 3 x M4 x 35mm CSK mounting screws with T nuts and hex nuts and 4x M3 x 6mm stop screws
